The data model

The erDiagram section is the foundation: it decides your tables, your API, your forms and your grids. Everything in later chapters attaches to something you name here, so it is worth getting the names right before you write a single rule.

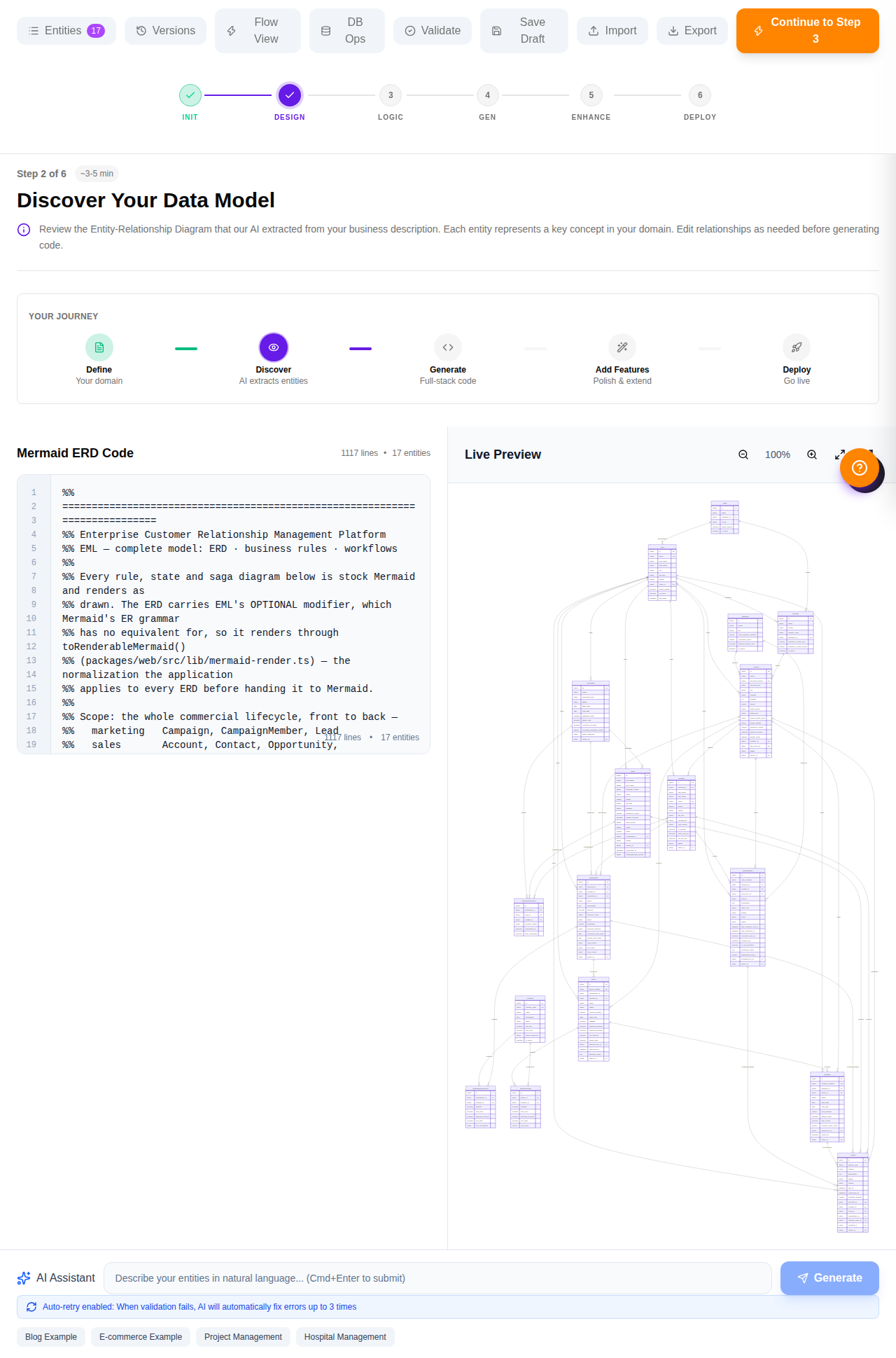

The shape of a model file

One file, several diagrams, read top to bottom. A section starts at a Mermaid keyword and runs until the next one. Directives above a section configure it; directives inside it annotate what it declares.

%% ---- Section 1: ERD --------------------------------------------------
%%meta name: Enterprise CRM
%%meta kind: erd
%%meta version: 1.0.0

%%category name: Sales Pipeline; icon: TrendingUp; entities: Opportunity, Product
%%enum LeadStatus: new, working, nurturing, qualified, converted, disqualified

erDiagram
    Lead {
        string  id PK
        ...
    }

    Campaign ||--o{ Lead : "generates"

    %%field Lead.status enum: LeadStatus
    %%index Lead(owner_id, status)
    %%entity Lead audited: true

%% ---- Section 2: a business rule --------------------------------------
%%meta kind: rules
%%rule leadScoring on Lead event: beforeCreate priority: 10
flowchart TD
    ...

Entities and attributes

An entity block is a table. Each line inside is type name [modifiers]. The type comes first, the way Mermaid's ER grammar wants it.

    Lead {
        string  id PK
        string  first_name
        string  last_name
        string  company_name
        email   email
        phone   phone OPTIONAL
        string  job_title OPTIONAL
        string  industry OPTIONAL
        integer employee_count OPTIONAL
        decimal annual_revenue OPTIONAL
        string  lead_source
        string  rating OPTIONAL
        integer score OPTIONAL
        string  campaign_id FK OPTIONAL
        string  status
        string  owner_id FK
        datetime converted_at OPTIONAL
        string  disqualification_reason OPTIONAL
    }

Types

Eight canonical types — string, text, integer, decimal, boolean, date, datetime, json — plus aliases that normalize to one of them while carrying intent. email is a string that renders as an email input; phone, url, password and money behave the same way. Use the alias when it says something true; nothing breaks if you use the base type instead.

Modifiers

Foreign keys resolve by name

There is no syntax for "this column points at that table". The generator derives it from the column name, so the name has to carry the reference:

• account_id → the Account entity. sla_policy_id → SlaPolicy.
• owner_id, manager_id, user_id, and anything ending _by or _by_id → the user entity. A person named by the role they played is still a user; there is no bus_approved_by table.
• Anything that resolves to nothing is stored as a plain string: no lookup, no display name, a raw UUID in your grids.

Relationships

Standard Mermaid cardinality operators. The label becomes the relationship's name; the glyphs decide which side carries the foreign key.

    Account     ||--o{ Contact             : "employs"
    Account     ||--o{ Opportunity         : "has pipeline"
    Opportunity ||--o{ OpportunityLineItem : "contains"
    Opportunity ||--o{ Quote               : "is priced by"
    Quote       ||--o{ Contract            : "becomes"
    SlaPolicy   ||--o{ SupportCase         : "applies to"
    User        ||--o{ Opportunity         : "owns"

Declare a relationship for every foreign key you write, including the ownership ones back to User. The checker reports the gap as EML502, and the generated application uses the relationship to build lookups, child panels and the sentence in each window's help text.

Enums: closed vocabularies

Declare the values once, then bind columns to them. This is what turns a status column from a text box into a dropdown, so it matters more than it looks.

%%enum LeadStatus: new, working, nurturing, qualified, converted, disqualified
%%enum LeadRating: hot, warm, cold
%%enum CasePriority: low, medium, high, critical

    %% inside the erDiagram, after the entity blocks
    %%field Lead.status          enum: LeadStatus
    %%field Lead.rating          enum: LeadRating
    %%field SupportCase.priority enum: CasePriority

Match the state machine exactly

If an entity has a lifecycle, its status enum and its state machine must carry the same set of values. The checker compares them and reports a state missing from the enum (EML426) or an enum value no state uses (EML427). Two lists that drift apart are the classic way a status ends up unreachable.

Indexes

UK gets you a single-column unique index for free. Anything composite — the pairs your lists actually filter and sort by — has to be asked for.

    %%index Account(territory_id, status)
    %%index Lead(owner_id, status)
    %%index Opportunity(account_id, stage)
    %%index Opportunity(owner_id, expected_close_date)
    %%index SupportCase(owner_id, priority)
    %%index Activity(owner_id, due_at)

Pick them from the questions the application asks: "my open opportunities by close date" is Opportunity(owner_id, expected_close_date). The column order matters — leading column first.

Grouping the dashboard

%%category decides how the home screen is organised. Without it every entity lands in one undifferentiated "General" block, which is survivable at five entities and unusable at seventeen.

%%category name: Sales Pipeline; description: Opportunities, their line items and the products sold; icon: TrendingUp; color: #0ea5e9; entities: Opportunity, OpportunityLineItem, Product
%%category name: Customer Service; description: Support cases and the service levels that govern them; icon: LifeBuoy; color: #f59e0b; entities: SupportCase, SlaPolicy
%%category name: People and Teams; description: Users, selling teams and organisational structure; icon: Users; color: #64748b; default: true; entities: User, Team

Keys are ;-separated and only name is required. default: true marks the category that catches anything you forgot to assign — at most one document may declare it. The description is rendered under the group heading, so write it for the person using the application, not for yourself.

Entity-level metadata

    %%entity Account     audited: true      -- every change recorded in the audit log
    %%entity Activity    softDelete: true   -- deletes stamp deleted_at instead of removing
    %%entity Product     label: Product Catalogue

Check before you go further

The checker reads the whole document against the language definition and reports errors, warnings and informational notes with line numbers and fixes. Run it while you write, not at the end.

$ bun language/checker.ts language/examples/crm.eml.mmd

Checking crm.eml.mmd
  ✓ No issues found.
  crm.eml.mmd  0 errors · 0 warnings
